KL 115

CNC-controlled sewing unit for attaching heating conductors (tubes or cables) on surface heating systems

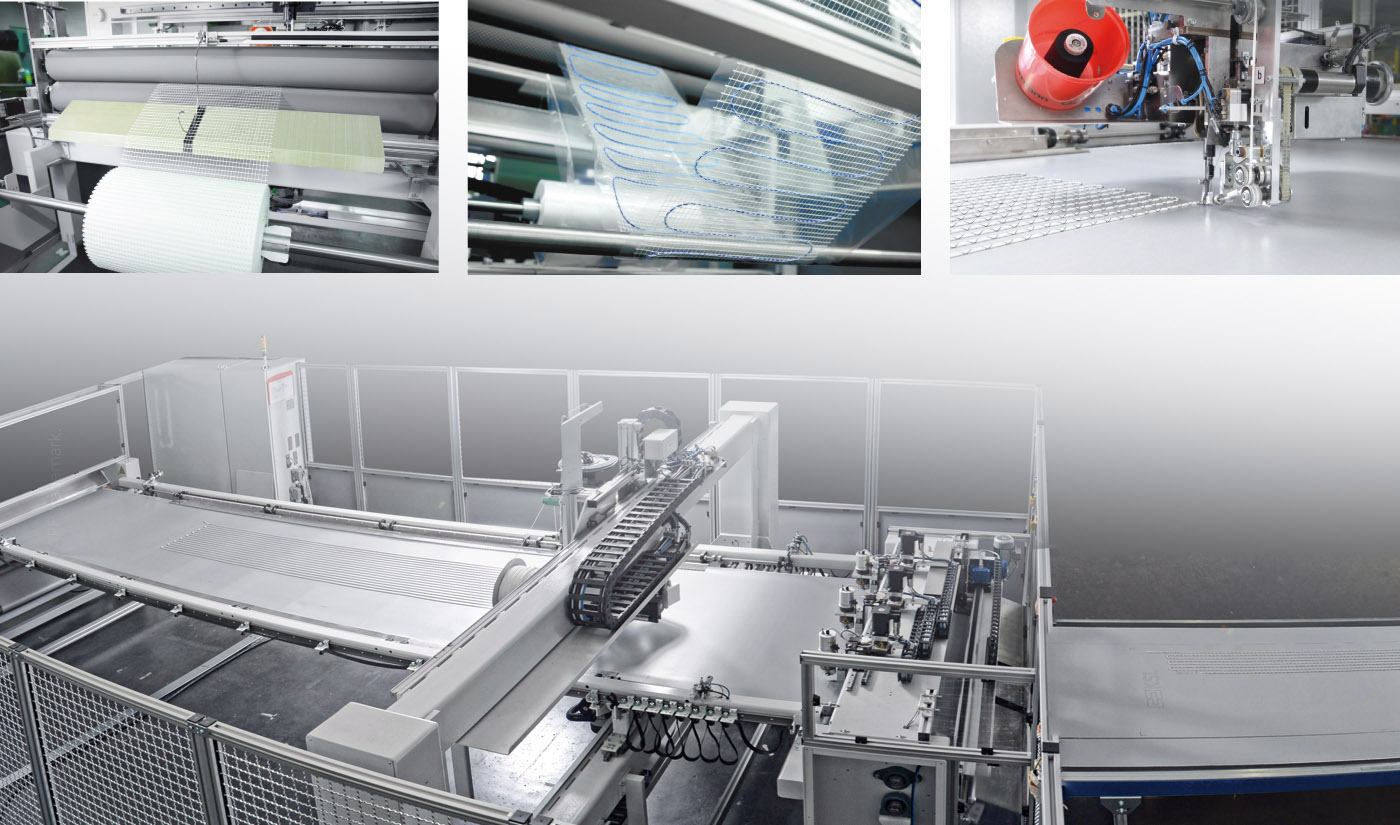

Heizsystem / Heating system


  • Components:
    - Unwinding station for cable/tube
    - Cable/tube dispenser
    - Unwinding station for fabric
    - Sewing unit
    - Winding station for the finished product

  • Sophisticated and highly efficient system for this complex operation process
  • Fully automatic, autonomous cable/tube laying + sewing (1- or 2-needle chainstitch) with a special laying head. Only the change at the unwinding and winding station is done manually.
  • The laying head can be swiveled 360 ° (rotating head) and enables laying even in tight radii
  • The unit ensures a laying on flat fabric and mesh fabric (max. width: 1.000 mm)
  • The position of the heating surfaces and the length- and crosswise layings are free-programmable
  • High-performance PC HMI with large number of service functions and freely definable user level
  • For maintenance and error analysis, the HMI can be controlled remotely from a PC, laptop or smart device (using TeamViewer® as standard)
  • Planning and implementation of the machine „ready to production“ based on customer requirements.


Laying speed: approx. 18 m/min. (amplitude: 960 mm)
Sewing speed: max. 1.800 s. p. m.
Distance between the cables/tubes: from 30 mm free selectable
Max. cable/tube diameter: 8 mm
