Automatic short seamer for double-pointed darts up to 300 mm seam length with vacuum table
Quality standards
Darts and waistband pleats play an important role both for the fit and for the overall visual appearance of trousers, skirts and blouses. The main demand on the manufacturer is to guarantee consistent quality and economic processing on a machine that is easy to operate. The PFAFF 3686 short seam automatic sewing machine meets this requirement. The PFAFF 3686 for darts and waistband pleats is the most versatile and efficient short seam automatic sewing machine on the market. Efficiency, flexibility, performance and price are the deciding advantages of the PFAFF 3586. Within 8 hours you can sew for example 650 pairs of trousers with 4 waistband pleats and 4 darts (without basted seam). Two new versions are available with the 3686-25/11 + 3586-25/12. The new machines realize double-pointed darts up to 490 mm inside of the fabric (not on the edge), e.g. darts on the front of a shirt or darts on the back of a blouse.
Features
Excellent quality; high repeating accuracy; seams and pleats with exact measurements. Only brief instructions required due to the simple and operator-friendly handling
Darts are sewn from the pocket opening to the point. This ensures a slim, neat point with no untidy “dimples”
The patented material take-over station assures exact seams
Loading table for exact positioning of the workpieces and their insertion during sewing. This partially overlapping work method enables the economic use of the machine (from -23/xx: positioning via laser pointer)
Conversion independent of guide rails / preprogrammed seam contours enable a change of operations in a matter of seconds
Identical dart depths for identical material thickness; even when switching the material and thus varying material thicknesses the desired dart depth may be exactly maintained by using a “correction key”
Upper thread monitor
The new control panel P1
The P1 are user friendly control panels with many service functions and different user levels
The desired measurements may be directly entered via the P1 operator panel of the touch screen (see examples on the next pages). Predefined standard seams are quickly edited / modified with ease
Sewing of up to 8 different seam types in any desired sequence, so e.g. different darts and waistband pleats can be set and produced mirror-imaged
Program data may be saved to a SD-card, USB-stick or multi-card reader and recorded to other machines. The software may also be updated via the SD-card
Customized seam configurations may be individually created in the teach-in mode
Options
Clamping unit for trousers or skirts darts and other small parts
Roll tension for pucker-free seams
Thread clamp
Applications
Single-pointed darts

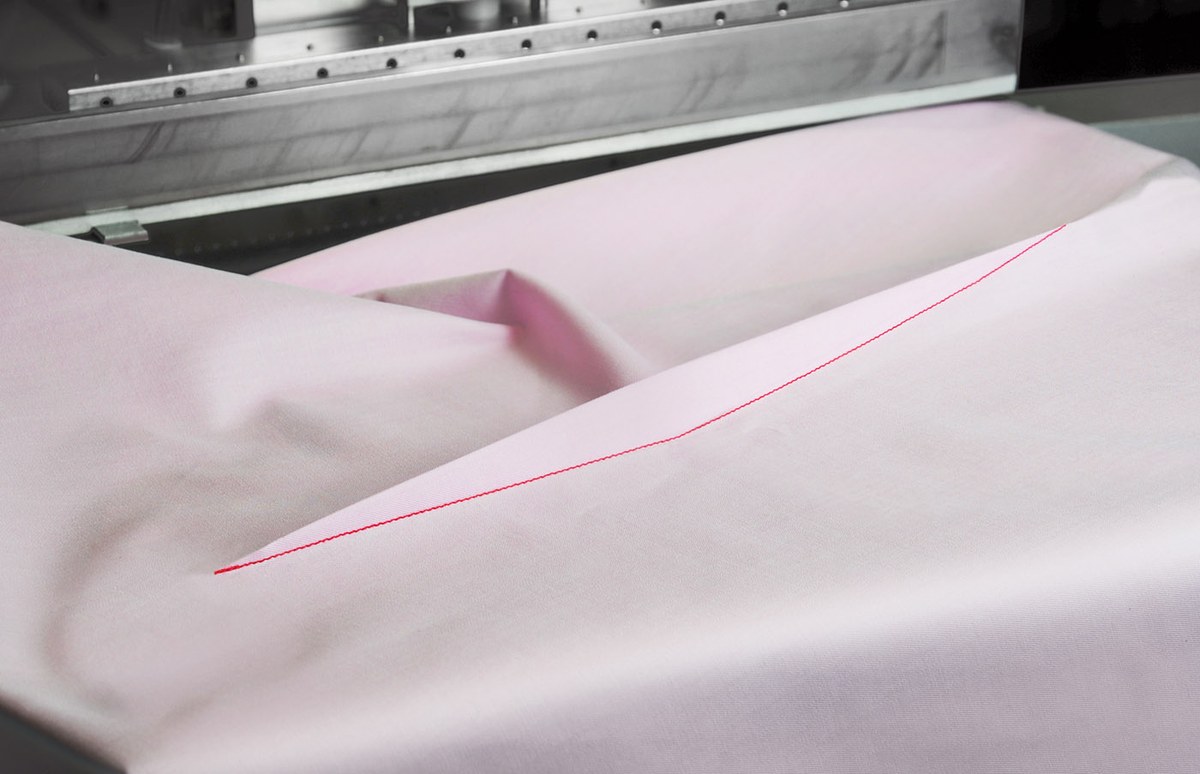

Double-pointed darts
Shaped darts for skirts with integrated waistband
Skirt pleats with and without angular seam (illustration: without)
Waist pleats with basted seam to better iron out the pleats
Short seam to run stitch the seam that is to be worked into the waistband (thus no loss of time when sewing the waistband with a consistently exact pleat depth)
Waistband pleats
Shaped darts for ladies’ trousers
Specifications
Max. dart depth: 30 mm (37 mm from 80 mm darts length) Max. waistband pleat depth: 70 mm (max. 40 mm waistband pleat depth with special clamping unit) Dart- / pleat length: 9.0 - 290mm Stitch type: 301 Max. sewing speed: 4,500 s.p.m. Max. stitch length: 1.0 - 3.0 mm Needle system: 134 KK Needle Size in 1/100 mm: 80 - 100 Stitch length basting seam: 6.0 - 9.0 mm Working height: 760 - 1,140 mm Motorspeed: 200 - 4,500 r.p.m. Power requirement: ca. 1,200 VA Connection voltage: E 230 V, 50/60 Hz Working air pressure: min. 6 bar
Machine dimensions
Length: 1,285 mm Width: 900 mm Height (without thread reel stand): 1,040 - 1,420 mm Weight: 200 kg
