Programmable automatic pocket setter with zigzag top for shirts and blouses
Quality standards
Freely programmable automatic sewing unit for sewing pockets on shirts and blouses. Pockets are not only functional, but also an important part of fashion, since they are very prominent on garments perfect workmanship is imperative. This is especially true, when functionality is combined with decoration.
„Best possible ergonomics, highest productivity and exceptional operating comfort characterizes this automated machine“
Features
PFAFF 3688-121: 250 x 250 mm sewing area (280 x 280 mm on request)
With Zigzag Top
For processing pre-folded and un-folded pockets (in combination)
The intermittent material feed reduces hook wear to a minimum and allows stitch lengths of 8 mm
Individual seam programming and exact seam correction for different materials guarantee a highly sewing reliability and consistant quality
Superior sewing results even if setting pockets with radii < 20 mm
Individually designing and programming of decorative seams
Easy loading and positioning of work piece due to a 15 degree tilted work surface (ergonomic + comfortable)

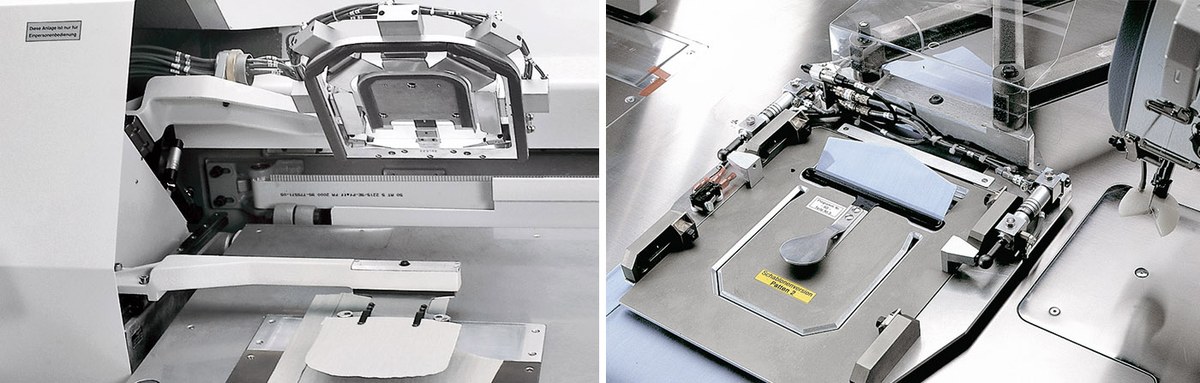

Rapid replacement of style kits: A fixed "zero point" makes it possible to us different style kits without time consuming re-adjustments
Special PFAFF sewing head for automatic units with tilt sewing head
High productivity, due to constant maximum sewing speed (4,000 s.p.m.) without speed reduction in corners or on bartacks

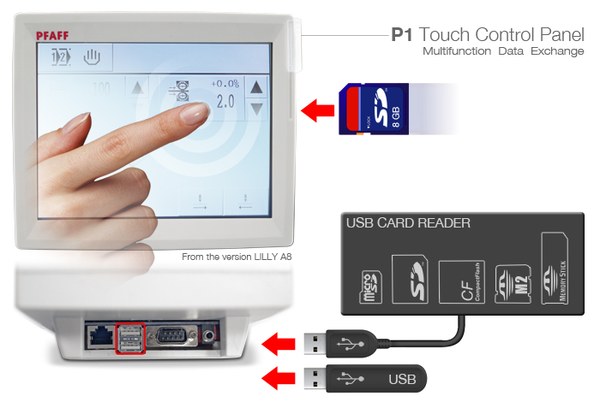

Touch control panel P1 (with SD card reader) displays all machine parameters in easily understandable symbols
NEW: Electronically-controlled thread tension
NEW: Direct drive and infeed slide with servo drives
NEW: Network connection (PFAFF CONNECT)
NEW: Adjustable vacuum strength
NEW: Basic kit "solenoid" - standard on all machines
Options
Efficient combination of two operations with optional style kits to set pockets and attach flaps in one operation or insert labels
Machine height adjustment activated on the touch screen control panel P1
