PFAFF 3686-25/11 Darts to 490 mm

Quality standards

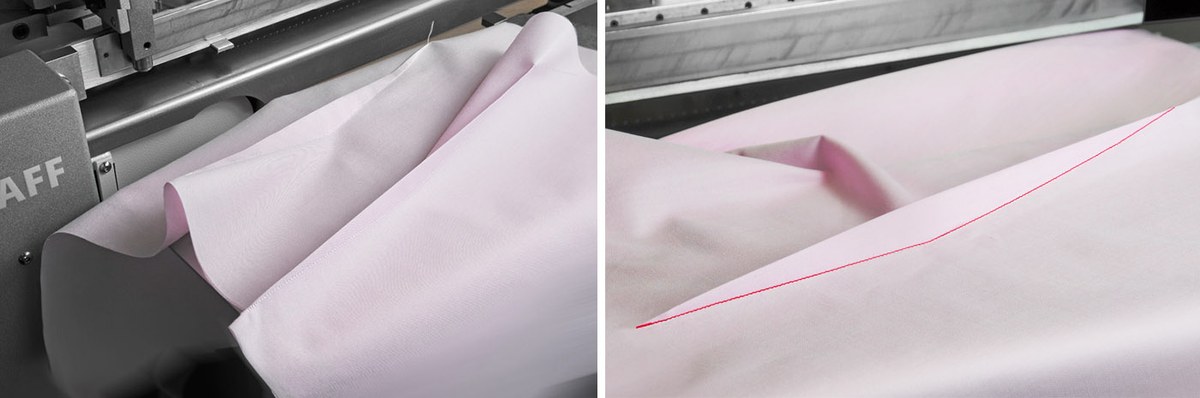

Darts and waistband pleats play an important role both for the fit and for the overall visual appearance of trousers, skirts and blouses. The main demand on the manufacturer is to guarantee consistent quality and economic processing on a machine that is easy to operate. The PFAFF 3686 short seam automatic sewing machine meets this requirement. The PFAFF 3686 for darts and waistband pleats is the most versatile and efficient short seam automatic sewing machine on the market. Efficiency, flexibility, performance and price are the deciding advantages of the PFAFF 3586. Within 8 hours you can sew for example 650 pairs of trousers with 4 waistband pleats and 4 darts (without basted seam). Two new versions are available with the 3686-25/11 + 3686-25/12. The new machines realize double-pointed darts up to 490 mm inside of the fabric (not on the edge), e.g. darts on the front of a shirt or darts on the back of a blouse.

Features

• All features of the “standard” machine
• Unique quality and process stability when processing long darts, e.g. on slimline shirts
• Large feeding table (823 x 340 mm)
• Clean-cut at end of the seam (< 5mm)
• LED pointer for positioning of the material
• Roll tension for pucker-free seams
• Upper thread monitor + thread clamp

The new control panel P1

• The P1 are user friendly control panels with many service functions and different user levels
• The desired measurements may be directly entered via the P1 operator panel of the touch screen (see examples on the next pages). Predefined standard seams are quickly edited / modified with ease.
• Sewing of up to 8 different seam types in any desired sequence, so e.g. different darts and waistband pleats can be set and produced mirror-imaged
• Program data may be saved to a SD-card, USB-stick or multi-card reader and recorded to other machines. The software may also be updated via the SD-card
• Customized seam configurations may be individually created in the teach-in mode

Options

• Special stacker
• Feeding table with vacuum
• Device for a „neat seam start" suction device for thread rests

Applications

• Single-pointed darts
• Double-pointed darts
• Shaped darts for skirts with integrated waistband
• Skirt pleats with and without angular seam (illustration: without)
• Waist pleats with basted seam to better iron out the pleats
• Short seam to run stitch the seam that is to be worked into the waistband (thus no loss of time when sewing the waistband with a consistently exact pleat depth)
• Waistband pleats
• Shaped darts for ladies’ trousers
• Double-pointed darts with a straight



Specifications

Max. dart depth: 20 mm
Max. waistband pleat depth: 20 mm
Dart- / pleat length: 9.0 - 490mm
Stitch type: 301
Max. sewing speed: 4,500 s.p.m.
Max. stitch length: 1.0 - 3.0 mm
Needle system: 134 KK
Needle Size in 1/100 mm: 80 - 100
Stitch length basting seam: 6.0 - 9.0 mm
Working height: 760 - 1,140 mm
Motorspeed: 200 - 4,500 r.p.m.
Power requirement: ca. 1,200 VA
Connection voltage: E 230 V, 50/60 Hz
Working air pressure: min. 6 bar

Machine dimensions

Length: 1,835 mm
Width: 240 mm
Height (without thread reel stand): 1,210 - 1,480 mm
Weight: 270 kg
